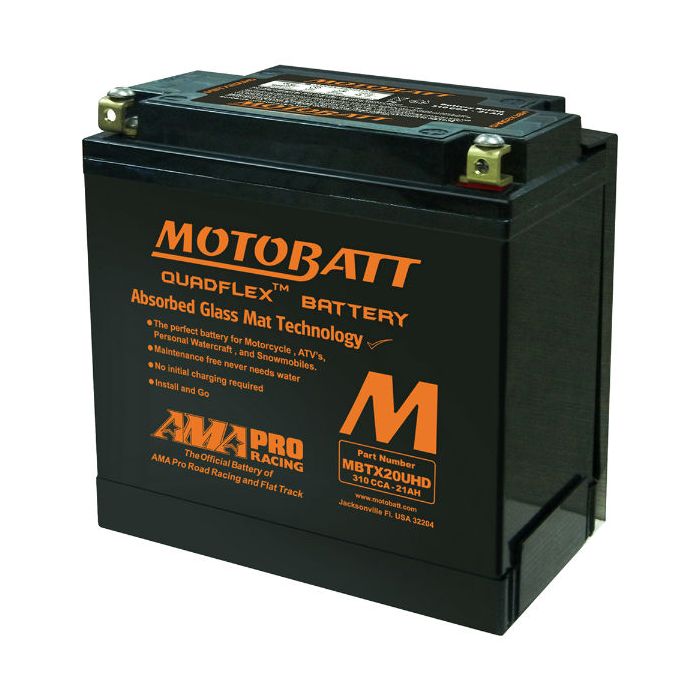

MBTX20UHD MotoBatt Battery w/ small terminals and bottom spacerMBTX20UHD MotoBatt Battery w/ small terminals and bottom spacer
Move your mouse over image or click to enlarge
MBTX20UHD MotoBatt Battery w/ no terminals MBTX20UHD MotoBatt Battery w/ bottom spacer detached MBTX20UHD MotoBatt Battery w/ small terminals and bottom spacer MBTX20UHD MotoBatt Battery w/ everything in the box

MotoBatt MBTX20UHD Replaces Harley 65989-97C and Others

Quick Overview

The MBTX20UHD Replaces over 20 Yuasa OEM battery part numbers including Harley part 65989-97C and Yuasa GYZ20L and YTX20HL-BS.
  • Availability

    In Stock

  • Product Brand

    MotoBatt

  • Model Number

    MBTX20UHD

  • Voltage (V)

    12

  • Cold Crank Amps (CCA)

    310

  • Capacity (Ah)

    21

  • Warranty

    24 Mo (1Yr + 1Yr)

$138.95
ADD TO CART
Motobatt MBVM Voltage & Alternator Tester

Get a FREE Motobatt Mini Pocket Sized Voltage & Alternator Tester with this purchase. This is a $11.95 Value and is for a limited time only so BUY NOW!

The MotoBatt MBTX20UHD is a special edition Harley-Davidson black version of the MBTX20U battery. It has up to 45% more CCA and 30% more amp hour capacity compared to all the batteries it replaces. The advanced AGM QuadFlex technology leads the industry in innovation and performance. Every MotoBatt battery comes standard with a 2 year replacement warranty. Replace your Harley part number 65989-97C, 65991-82B, 65989-90C as well as Yuasa parts GYZ20L, YTX20L-BS or YTX20HL-BS today and experience true powerful.

Did you know, the MotoBatt MBTX20UHD is actually the same battery as the MBTX20U. The only difference is the physical outer color. The standard version is Motobatt's signature yellow, while the HD version is black allowing custom V-Twin bikes and others that have an exposed battery some camouflage.

The MotoBatt MBTX20U QuadFlex AGM Battery Replaces These 22 Yuasa Batteries.
MotoBatt SKUAhCCAL x W x H (inches)L x W x H (mm)Total Terminals
MBTX20U213106.893.426.10175871554 QuadFlex

Replaces These OEM Yuasa Part Numbers
OEM ModelAhCCAL x W x H (inches)L x W x H (mm)Spacer Height
12N16-3A162106.933.986.1417610115620mm0.79"
12N16-3B162106.893.946.10175100155
12N16-4A162106.933.986.14176101156Total Heght
12N16-4B162106.933.986.14176101156175 mm6.89"
YTX20-BS182506.893.426.1017587155
YTX20H-BS182706.893.426.1017587155Includes Side Spacer for Vibration Control on Wider OEM's
YTX20L-BS182506.893.426.1017587155
YTX20HL-BS182706.893.426.1017587155
YTX20HL-BS-PW182706.893.426.1017587155
YB16-A192406.893.946.10175100155
YB16-A2192406.893.946.10175100155
YB16-B192406.893.946.10175100155
YB16-B2192406.893.946.10175100155
YB16HL-A-CX192406.893.946.10175100155
SYB16L-B192406.893.946.10175100155
YB16L-A192406.893.946.10175100155
YB16L-A2192406.893.946.10175100155
YB16L-B192406.893.946.10175100155
YB16L-B2192406.893.946.10175100155
YB16C-B192706.893.946.89175100175
YB16CL-B192806.893.946.89175100175
YB16-B-CX192706.893.946.10175100155
Product Specs
Availability Note: In Stock
Brand: MotoBatt
Model: MBTX20UHD
Capacity 20Hr (Ah): 21
Cold Cranking Amps (CCA): 310
Voltage (V): 12
Chemistry: AGM - Factory Sealed
Warranty: 24 Mo (1Yr + 1Yr)
Polarity: +++|--- and ---|+++
Cranking Amps (CA): No
Pulse Cranking Amps (PCA): No
Dimensions (LxWxH - inches): 6.89 x 3.43 x 6.1
Dimensions (LxWxH - metric): 175 x 87 x 155
Weight (lb): 14.23
OEM Replacement: 65989-97C, 65989-97B, GYZ20L, YTX20-BS, YTX20L-BS, YTX20HL-BS, YB16-B, and more...
This Product Fits
Motorcycle
  • BIG DOG
  • BUELL M2 Cyclone (1997-2002)
  • BUELL RR1200 (1988-1990)
  • BUELL RS1200 (1989-1993)
  • BUELL RSS1200 (1991-1993)
  • BUELL S2, S2T Thunderbolt (1994-1996)
  • BUELL S3, S3T Thunderbolt (1997-2002)
  • BUELL X1 Lightning (1999-2002)
  • BUELL RR1000 (1987)
  • CAGIVA Elefant (1994-1997)
  • DUCATI I.E. Paso (1990-1994)
  • DUCATI Paso (1990-1992)
  • EXCELSIOR-HENDERSON
  • EXCELSIOR-HENDERSON Super X (1999-2000)
  • HARLEY-DAVIDSON FXD Series (Dyna) (2007-2009)
  • HARLEY-DAVIDSON FXST, FLST Series (Softail) (2007-2009)
  • HARLEY-DAVIDSON FXD Series (Dyna) (1999-2006)
  • HARLEY-DAVIDSON FXST, FLST Series (Softail) (2000-2006)
  • HARLEY-DAVIDSON FLST Series (Softail) (1997-1999)
  • HARLEY-DAVIDSON FX-FXR Series (1979-1994)
  • HARLEY-DAVIDSON FXD-FXST Series (Dyna) (1991-1996)
  • HARLEY-DAVIDSON FXD-FXST Series (Dyna) (1997-1999)
  • HARLEY-DAVIDSON FXR Series (1999-2000)
  • HARLEY-DAVIDSON FXST-FLST Series (Softial) (1984-1990)
  • HARLEY-DAVIDSON VRSC V-Rod (2008-2009)
  • HARLEY-DAVIDSON FX Series (Electric Start) (1971-1978)
  • HARLEY-DAVIDSON XL, XLH (Sportster) (1987-1996)
  • HARLEY-DAVIDSON XL, XLH (Sportster) (1997-2003)
  • HARLEY-DAVIDSON XL Series Sportster (1987-1993)
  • HARLEY-DAVIDSON XLCR Cafe Racer (1977-1978)
  • HARLEY-DAVIDSON XLX-61,XR1000 (1983-1985)
  • HARLEY-DAVIDSON XLH (Sportster) (1986-1996)
  • HONDA GL1800 Gold Wing (2001-2009)
  • HONDA NRX1800 Valkyrie Rune (2004-2005)
  • HONDA VTX1800C, N, R Retro, S (2002-2007)
  • INDIAN 1442 Scout, Spirit (2002-2003)
  • INDIAN All Models (1999-2001)
  • KAWASAKI KZ1100-B GP (1981-1982)
  • KAWASAKI ZX1100-A GPz (1983-1984)
  • KAWASAKI KZ1000-C Police (1980-1981)
  • KAWASAKI KZ1000-E ST, Shaft (1979-1980)
  • KAWASAKI KZ1000-P Police (2002-2003)
  • KAWASAKI KZ1000-P Police (2005)
  • POLARIS VICTORY Vegas, Jackpot, Hammer, Ness, Vision (2008-2009)
  • POLARIS VICTORY Vegas, Kingpin, Hammer (2006-2009)
  • POLARIS VICTORY V92C,DC Classic,Deluxe Cruiser (1998-2004)
  • POLARIS VICTORY V92SC Sport Cruiser (2000-2001)
  • POLARIS VICTORY V92TC Touring Cruiser (2002-2006)
  • POLARIS VICTORY Vegas, Kingpin, Hammer (2003-2005)
  • YAMAHA XV1700A Road Star, Silverado (2004-2009)
  • YAMAHA XV1600 Road Star (1999-2003)
  • YAMAHA XVZ13 Royal Star-Venture (All) (1996-2009)
  • YAMAHA TX750 (1973-1974)
  • HARLEY-DAVIDSON XL Series
  • HARLEY-DAVIDSON FXD (Dyna) (2011 - 2012
  • HARLEY-DAVIDSON FLS (Softail) (2011 - 2012)
  • HARLEY-DAVIDSON CVO FLST (Softail) (2010 - 2012)
  • HARLEY-DAVIDSON CVO FXD Fat Bob (Dyna) (2010 - 2012)
ATV
  • ARCTIC CAT Thunderbolt (2009)
  • ARCTIC CAT 700H1 (2009)
  • BOMBARDIER (CAN-AM) Outlander 400, XT, Max (2004-2009)
  • BOMBARDIER (CAN-AM) Outlander, MAX, Renegade (2009)
  • BOMBARDIER (CAN-AM) Traxter (All Models),Quest (1999-2005)
  • BOMBARDIER (CAN-AM) Outlander, MAX (2009)
  • BOMBARDIER (CAN-AM) Quest (2002-2005)
  • BOMBARDIER (CAN-AM) Outlander 660 EFI (2006)
  • BOMBARDIER (CAN-AM) Outlander 800 EFI, Renegade (2006-2007)
  • HONDA TRX650 FourTrax Rincon (opt. cold start) (2003-2004)
  • HONDA TRX680 Four Trax Rincon (2006-2009)
  • KAWASAKI KLF300-A Bayou (1986-1987)
  • KAWASAKI KLF300-B Bayou (CN) (1992-1999)
  • KAWASAKI KLF300-C Bayou 300 4x4 (CN) (1992-2005)
  • KAWASAKI KVF300-A Prairie 300, 4x4 (CN) (1999-2001)
  • KAWASAKI KVF300-B Prairie 300, 4x4 (CN) (1999-2002)
  • KAWASAKI KLF400-B Bayou 400 4x4 (1993-2000)
  • KAWASAKI KVF400-A Prairie 400 4x4(CN) (1997-2000)
  • KAWASAKI KVF400-B Prairie 400 4x4 (CN) (1998-2000)
  • YAMAHA YFM400FB Big Bear (2000-2009)
  • YAMAHA YFM400FW Kodiak-Automatic (1996-2002)
  • YAMAHA YFM400FWN Big Bear (2000-2003)
  • YAMAHA YFM450FG Grizzly (2007-2009)
  • YAMAHA YFM450FW Kodiac-Automatic (2003-2009)
  • YAMAHA YFM450FX Wolverine (2006-2008)
  • YAMAHA YFM550 Grizzly (2009)
  • YAMAHA YFM600FW Grizzly (1998-2001)
  • YAMAHA YFV600 Grizzly (1998-2001)
  • YAMAHA YFM660FA Grizzly (2002-2008)
  • YAMAHA YFM700FG Grizzly (2007-2009)
  • JOHN DEERE
Personal Watercraft
  • AQUA-JET Aqua-Jet SX1 (1989-1990)
  • AQUA-JET Aqua-Jet SX1 (1991)
  • ARCTIC CAT Tiger Shark (All other models) (1993-2004)
  • BRP - SEA-DOO All Models (1988-1993)
  • BRP - SEA-DOO All Other Models (1994-2007)
  • BRP - SEA-DOO 3D (2007)
  • HONDA AquaTrax F-15, F-15X (2003-2009)
  • HONDA AquaTrax F-12, F-12X (2002-2007)
  • HONDA AquaTrax R-12, R-12X (2003-2007)
  • KAWASAKI - JET SKI JT1500-A, STX-15F (2004-2009)
  • KAWASAKI - JET SKI JT1500B, C, 250X Ultra LX (2007-2009)
  • KAWASAKI - JET SKI JH1200-A, B Ultra 150 (1999-2005)
  • KAWASAKI - JET SKI JT1200-A-B, C, STX-R, STX-12F (2002-2007)
  • KAWASAKI - JET SKI JH1100 ZXi (1996-2003)
  • KAWASAKI - JET SKI JH1100-B Ultra 130 (2001-2004)
  • KAWASAKI - JET SKI JT1100 STX (1997-2003)
  • KAWASAKI - JET SKI JH900 ZXI (1995-1997)
  • KAWASAKI - JET SKI JT900 STS STX (1997-2005)
  • KAWASAKI - JET SKI JS800 SX-R (2003-2009)
  • KAWASAKI - JET SKI JH750 B1-B3 (1993-1995)
  • KAWASAKI - JET SKI JH750 E1 F2 G1 G2 (1995-1999)
  • KAWASAKI - JET SKI JH750 SS, ST, Si, XiR (1992-1999)
  • KAWASAKI - JET SKI JH750 ST, ZXI (1995-1997)
  • KAWASAKI - JET SKI JS750 SX, ZX (1992-1995)
  • KAWASAKI - JET SKI JS750 SXI, SXI Pro (1995-2002)
  • KAWASAKI - JET SKI JT750 STS, STX (1996-1998)
  • KAWASAKI - JET SKI JT750 XiR, ST, STS (1994-1995)
  • KAWASAKI - JET SKI JF650 TS (1989-1996)
  • KAWASAKI - JET SKI JF650 X2 (1986-1995)
  • KAWASAKI - JET SKI JL650 SC (1991-1995)
  • KAWASAKI - JET SKI JS650 SX (1987-1995)
  • KAWASAKI - JET SKI JS550, SX (1982-1985)
  • KAWASAKI - JET SKI JS550, SX (1986-1995)
  • KAWASAKI - JET SKI JS440 (1977-1986)
  • KAWASAKI - JET SKI JS440 (1987-1992)
  • KAWASAKI - JET SKI JS400 (1976)
  • KAWASAKI - JET SKI JS300 TS, SX (1986-1991)
  • Wet Jet International
  • YAMAHA 1800 FX, FZ (2009-2011)
  • YAMAHA 1100 VX (2009-2011)
  • YAMAHA 700 Super Jet (2009-2011)
  • YAMAHA
  • POLARIS
UTV
  • KAWASAKI Advantage Classic (2003-2009)
  • KAWASAKI KAF620, Mule 2500, 2510, 2520 (2003-2007)
  • KAWASAKI KAF620, Mule 3000, 3010, 3020 (2003-2007)
  • KAWASAKI KAF620, Mule 3010 4X4 (2003-2007)
  • KAWASAKI KAF620F, Mule 4010 4x4 (2009)
  • KAWASAKI KAF540, Mule 2010, 2020, 2030 (All Years)
  • KAWASAKI KAF450,Mule 1000 (All Years)
  • POLARIS RZR (2008-2009)
  • SUZUKI QUV620F (2005)
Snowmobile
  • ARCTIC CAT Crossfire 700 (2006)
  • ARCTIC CAT Crossfire 600 (2006-2007)
  • ARCTIC CAT Crossfire 500 (2007)
  • BRP - SKI-DOO Expedition, Legend, Skandic (2009)
  • BRP - SKI-DOO GSX, MX Z,Summit (2009)
  • BRP - SKI-DOO Expedition, Skandic, Summit (2009)
  • BRP - SKI-DOO GSX, GTX (2009)
  • BRP - SKI-DOO Expedition, Freestyle, Skandic (2009)
  • BRP - SKI-DOO GSX,GTX, MX,Z (2009)
  • BRP - SKI-DOO Skandic (2009)
  • POLARIS FS-FST (2006-2009)
  • POLARIS Tubro Switchback, Dragon (2006-2009)
  • YAMAHA LE (1989-1998)
  • YAMAHA Nitro (2009)
  • YAMAHA Venture (2009)
  • YAMAHA RS1000S, GT, RS (2006-2008)
  • YAMAHA RX1000R RX (All Models) (2003-2005)
  • YAMAHA Vector-Viking (2009)
FAQs


FAQs About This Product

Ask a Question

  • It does not look like this battery comes with terminal connectors??
    Yes, this battery comes with detachable QuadFlex terminals. In fact, the MBTX20UHD comes with two sets of terminals. One is a little bigger than the other and allows for a flush mount to the front of the battery for Harley bikes with short stubby connectors. Scroll through the battery images to see what the battery looks like with and without the terminals attached.
    Rate This Answer:

  • Does the back of this battery have any writing on the back of it? Can you send me a picture of the back of the battery?
    The battery says the exact same thing on the back as what you see on the front.
    Rate This Answer:

  • Does this battery replace a Harley Davidson # 65989-97D
    Yes, this battery replaces the Harley battery 65989-97. The letter on the end (A, B, C, D) indicates when a change in manufacturer occurred or if there was a specification update such as a higher CCA or AH.
    Rate This Answer:
