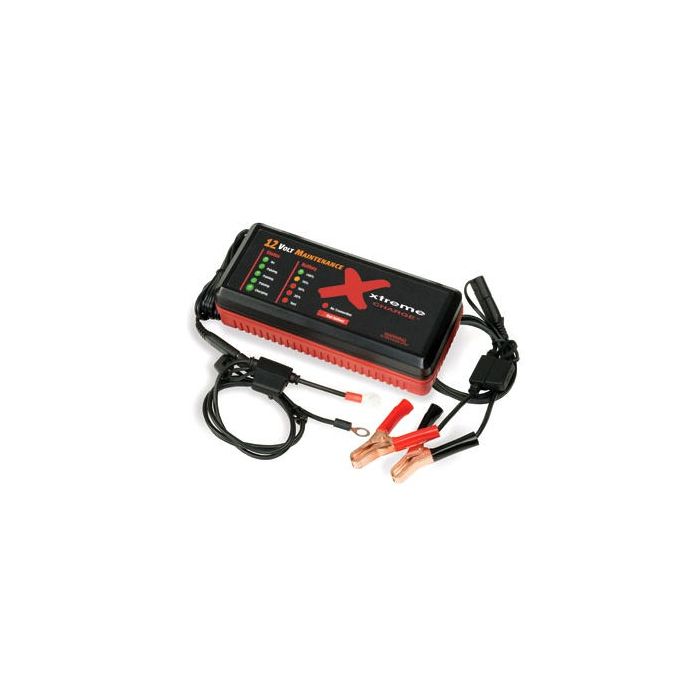

PulseTech 12V Xtreme Charge MODIFIED Battery Charger
Move your mouse over image or click to enlarge

PulseTech XC100-P Modified Version for 240V

Quick Overview

The XC100-P-MOD is specifically designed for use outside North America or where erratic voltage spikes are common. The added voltage filters will protect your charger from being damaged.
  • Availability

    In Stock

  • Product Brand

    PulseTech

  • Model Number

    XC100-P-MOD

  • Voltage (VDC)

    12

  • Max DC Current (A)

    2.5

  • Warranty

    5 Year

$112.95
ADD TO CART

This version of the XC100-P is designed to absorb erratic and sudden spikes in AC voltage experienced in many countries outside the USA and Canada. The added dampener will protect the main circuit board from damage. Under normal operating conditions where a steady 110 or 240 VAC wave is detected the standard XC100 will perform without issue. Typically when using a generator or external dampener the standard unit will suffice. However it is highly recommended when living outside North America to use the XC100-P-MOD version since voltage spikes beyond PulseTech's normal operating parameters are common. Without the proper safeguards, these spikes can render the standard version inoperable.



Evaluation and Test
Xtreme Charge®’s unique TEST feature evaluates the battery thoroughly during the initial connection to determine the appropriate charge rate based on its size and condition. It tests the battery continually for as long as it is connected to the charger to maintain the optimal bulk or float charge rate. This TEST step incorporates a “Bad Battery” indication if it determines the battery is faulty and cannot be re-charged.

Maintenance and Bulk Charge
The PulseTech XC100-P Xtreme battery charger is designed to be a maintenance charger for any type of 12-V lead-acid battery. By imposing only the appropriate amount charge rate, the battery is maintained safely at its proper operating voltage indefinitely. Conversely, if the charger is connected to a discharged battery, its bulk charge capability (2.5 A actual/5 A effective) will re-charge the battery rapidly and safely so it can be put back into service quickly. Proprietary Charge Algorithms A proprietary computer-integrated technology measures both voltage and current to determine the appropriate amount of charge the battery is able to accept at any given time. As the pulse and saturation charges improve the battery’s condition, the charge rate may be increased safely to an optimal level. This proprietary algorithm protects the battery from the risk of damage due to overcharging.

Variable Float Charge
PulseTech®’s intelligent circuitry imposes the correct amount of charge rate as determined by the continual evaluation of the battery’s condition. The charge rate may be as minimal as 0.2 A during typical float up to the full 2.5 A for more deeply discharged batteries. This variable float charge ensures optimal charge rate is applied to the battery.

Patented Pulse Technology
PulseTech’s unique and patented Pulse Technology increases the duty and life cycles of any size or type of 12-V lead-acid battery by minimizing the size of the lead sulfate crystals. This allows a battery to accept as much charge as possible. Th technology in the PulseTech XC100-P Xtreme battery charger helps ensure that your new batteries will stay in like new condition while older batteries often improve dramatically. Duty cycles are typically extended from three to five times for all types of lead-acid batteries! Xtreme battery chargers are ideally suited for AGM and maintenance-free batteries (from less than 10 Ah to over 150 Ah depending on whether you are charging or simply maintaining). The combination of patented pulse technology and proprietary charging algorithm typically allows it to charge these high-performance batteries more fully. The PulseTech XC100-P also maintains a safe charge profile for traditional batteries including flooded, fill and charge and gel.

The PulseTech XC100-P Xtreme Battery Charger Contents Includes fuse-protected quick-disconnect battery clamps and lugs, Important Safety Instructions and Quick-Start Guide. This fuse-protected, spark-proof unit is UL and CE certified. Five-year warranty.

Product Specs
Availability Note: In Stock
Brand: PulseTech
Model: XC100-P Modified
Chemistry: Lead Acid
Input Frequency (Hz): 50 / 60
Voltage (VDC): 12
Input Voltage (VAC): 90-250
Output Voltage - Charging (V): 14.8
Max AC Current (A): N/A
Output Voltage - Float (V): 13.4
Output Banks: 1
Max DC Current (A): 2.5
Ripple (%): No
Operating Temp. Range (oC): 32-115
Warranty: 5 Year
Dimensions (LxWxH - metric): 198 x 76 x 64
Weight (lb): 1.8
Dimensions (LxWxH - inches): 7.8 x 3.0 x 2.5
FAQs


FAQs About This Product

Ask a Question

  • Hi, how can I see the difference between a normal and modified XC-100P?
    There is no physical difference on the device. The packaging will have a sticker on it indicating it has been modified.
