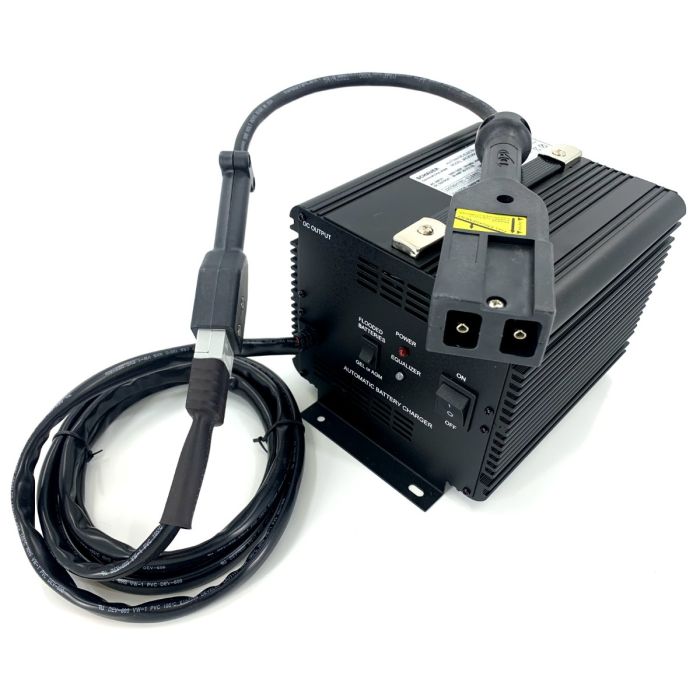

42V Western & EZ Go Golf Cart Battery Charger w/ Notched TXT Connector
$365.00
In stock
SKU
JAC1742-Western
Western Golf Car 42 Volt 17 Amp replacement charger with TXT Connector.
This 42 volt Western charger comes with the EZGO TXT connector with the top groove required for Western golf cars. The detachable TXT pigtail also allows the user to connect to other applications using the common plug-in-play SB50 connector. The JAC1742, made by Schauer, features an auto-sensing universal input from 100-240VAC. It is perfect for wet cell, gel and AGM style deep cycle batteries. The JAC1742 is made with a durable aluminum case and has flanges for mounting.
| Brand | Schauer |
|---|---|
| Model | JAC1742-Western |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 42 |
| Input Voltage (VAC) | 100-240 |
| Output Voltage - Charging (V) | 51.9 |
| Output Voltage - Float (V) | 47.3 |
| Output Banks | 1 |
| Max DC Current (A) | 17 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 286 x 178 x 171 |
| Weight (lb) | 11 |
| Dimensions (LxWxH - inches) | 11.25 x 7.0 x 6.75 |
