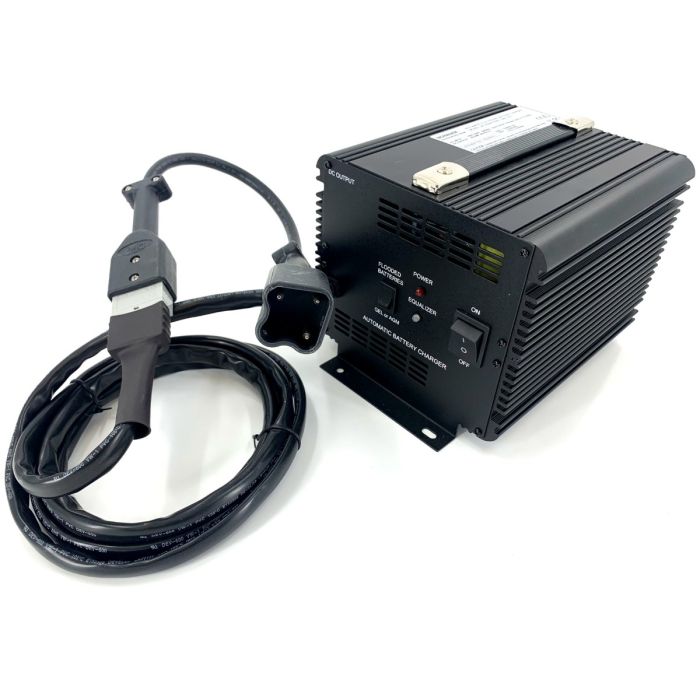

JAC1548-YamPDR Yamaha Charger
Move your mouse over image or click to enlarge

Yamaha G29 Drive 3-Pin Charger Replacement for 2007 and Newer Golf Carts

Quick Overview

Comes with Clover Style 3-Pin Yamaha Charger Plug for carts made 2007 or later. The JAC1548 Schauer charger is a 48V 15A Smart 3 Stage Charger.
  • Availability

    In Stock

  • Product Brand

    Schauer

  • Model Number

    JAC1548-YamPDR

  • Voltage (VDC)

    48

  • Max DC Current (A)

    15

  • Warranty

    2 Year

$328.95
ADD TO CART
This is a replacement Yamaha G29/Drive 48 Volt 15 Amp Intelligent charger with 3-Pin "clover or leaf" Style plug connector. This smart Yamaha golf cart charger made by Schauer will never over charge your batteries and its unique charge profile will charge just as fast as many 20 or 25 amp chargers. The detachable 1.5ft clover or leaf style pigtail connector makes this gold cart charger very useful. This will allow you to use the charger on other 48 volt applications such as Club Car, or older Yamaha Golf Carts by simply attaching the necessary pig tail. Order a Yamaha 48 volt golf cart charger online today!
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC1548
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 48
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 59.5 or 57.6
Max AC Current (A): N/A
Output Voltage - Float (V): 53.6
Output Banks: 1
Max DC Current (A): 15
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 286 x 178 x 171
Weight (lb): 11
Dimensions (LxWxH - inches): 11.25 x 7.0 x 6.75
