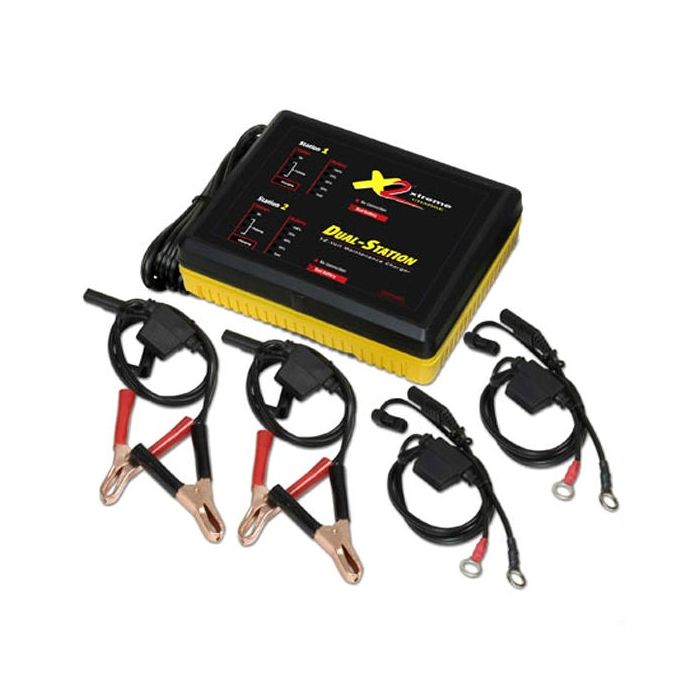

PulseTech X2 Xtreme Charger - 2 Banks

The PulseTech X2

The XC100-P-X2, also known by the military part number 100x200, is PulseTech's 2 bank version of the ever popular XC100-P in the Extreme Charge series. Using Patented Pulse Technology, the X2, with its two independent 12 volt charging leads, will remove harmful sulfate buildup from lead acid based batteries. Sulfation is the #1 cause of premature battery failure and is reversible and preventable. Xtreme Charge Contents Includes fuse-protected quick-disconnect battery clamps and lugs, Important Safety Instructions and Quick-Start Guide. This fuse-protected, spark-proof unit is UL and CE certified. Five-year warranty.

Evaluation and Test
Xtreme Charge®’s unique TEST feature evaluates the battery thoroughly during the initial connection to determine the appropriate charge rate based on its size and condition. It tests the battery continually for as long as it is connected to the charger to maintain the optimal bulk or float charge rate. This TEST step incorporates a “Bad Battery” indication if it determines the battery is faulty and cannot be re-charged.

Maintenance and Bulk Charge
The XC100-P-X2 is designed to be a maintenance charger for any type of 12 Volt lead-acid battery. By imposing only the appropriate amount charge rate, the battery is maintained safely at its proper operating voltage indefinitely. Conversely, if the charger is connected to a discharged battery, its bulk charge capability (2.5 A actual/5 A effective) will re-charge the battery rapidly and safely so it can be put back into service quickly. Proprietary Charge Algorithms A proprietary computer-integrated technology measures both voltage and current to determine the appropriate amount of charge the battery is able to accept at any given time. As the pulse and saturation charges improve the battery’s condition, the charge rate may be increased safely to an optimal level. This proprietary algorithm protects the battery from the risk of damage due to overcharging.

Variable Float Charge
PulseTech®’s intelligent circuitry imposes the correct amount of charge rate as determined by the continual evaluation of the battery’s condition. The charge rate may be as minimal as 0.2 A during typical float up to the full 2.5 A for more deeply discharged batteries. This variable float charge ensures optimal charge rate is applied to the battery.

Patented Pulse Technology
PulseTech’s unique and patented Pulse Technology increases the duty and life cycles of any size or type of 12-V lead-acid battery by minimizing the size of the lead sulfate crystals. This allows a battery to accept as much charge as possible. Pulse Technology helps ensure that your new batteries will stay in like new condition while older batteries often improve dramatically. Duty cycles are typically extended from three to five times for all types of lead-acid batteries! Xtreme Charge is ideally suited for AGM and maintenance-free batteries (from less than 10 Ah to over 150 Ah depending on whether you are charging or simply maintaining). The combination of patented pulse technology and proprietary charging algorithm typically allows it to charge these high-performance batteries more fully. It also maintains a safe charge profile for traditional batteries including flooded, fill and charge and gel.
