XC-QL4-K2 Charger Kit
Move your mouse over image or click to enlarge

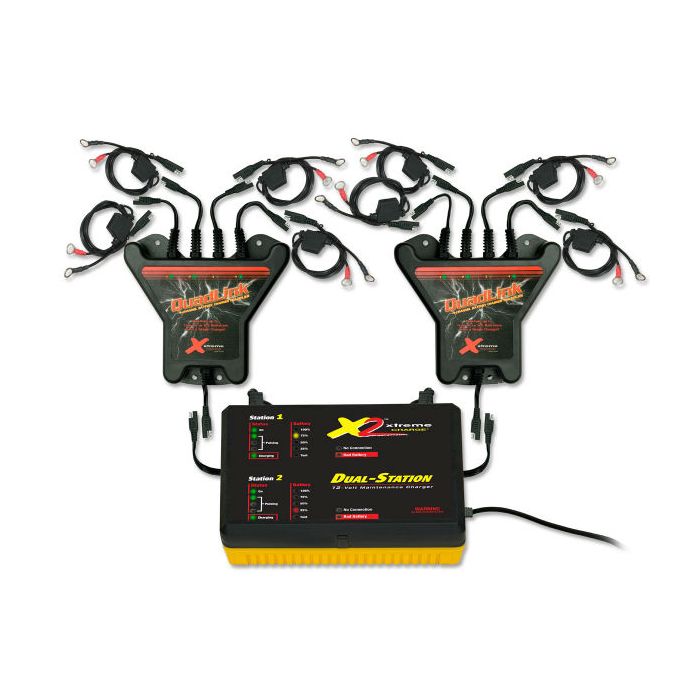

8-Station XC-2 QuadLink Charger Kit by PulseTech

Quick Overview

Includes one (1) 12 volt XC100-P-X2 2.5A Xtreme 2 bank charger, two (2) PulseTech 4-station Quadlink, ten (10) battery leads with ring lugs, two (2) battery lead with clips, eight (8) 5ft extension leads, and four (4) 25ft extension leads. Plus for a limited time a FREE Quick Battery Tester!
  • Availability

    In Stock

  • Product Brand

    PulseTech

  • Model Number

    XC-QL4-K2

  • Voltage (VDC)

    12

  • Max DC Current (A)

    2.5

  • Warranty

    5 Year

Original Price : $398.95
$378.95
ADD TO CART

The 4-station XC100-P-X2 QuadLink charger kit is ideal for maintaining up to four (8) 12-volt lead acid batteries of any type (AGM, Gel, Conventional). This setup will desulfate your batteries allowing them to accept, store and release maximum power up to 5 times longer than just charging or letting a battery sit between being used. the charging sequence continues indefinitely until power is shut off. It will never overcharge your batteries and will automatically skip any open leads. The QuadLink PulseTech charger kit also makes it easy to maintain 24V, 36V and 48V series applications that use 12 volt batteries.

Patented Pulse Technology
PulseTech’s unique and patented Pulse Technology increases the duty and life cycles of any size or type of 12-V lead-acid battery by minimizing the size of the lead sulfate crystals. This allows a battery to accept as much charge as possible. Pulse Technology helps ensure that your new batteries will stay in like new condition while older batteries often improve dramatically. Duty cycles are typically extended from three to five times for all types of lead-acid batteries! Xtreme Charge is ideally suited for AGM and maintenance-free batteries (from less than 10 Ah to over 150 Ah). The combination of patented pulse technology and proprietary charging algorithm typically allows it to charge these high-performance batteries more fully. It also maintains a safe charge profile for traditional batteries including flooded, fill and charge and gel.

Xtreme Charge Contents Includes fuse-protected quick-disconnect battery clamps and lugs, Important Safety Instructions and Quick-Start Guide. This fuse-protected, spark-proof unit is UL and CE certified. Five-year warranty with this multi battery charging station.

Product Specs
Availability Note: In Stock
Brand: PulseTech
Model: XC-QL4-K2 (100x206)
Chemistry: Lead Acid
Input Frequency (Hz): 50 / 60
Voltage (VDC): 12
Input Voltage (VAC): 90-250
Output Voltage - Charging (V): 14.8
Max AC Current (A): N/A
Output Voltage - Float (V): 13.4
Output Banks: 2
Max DC Current (A): 2.5
Ripple (%): No
Operating Temp. Range (oC): 32-115
Warranty: 5 Year
Dimensions (LxWxH - metric): 203 x 165 x 64
Weight (lb): 12.9 (total combined)
Dimensions (LxWxH - inches): 8 x 6.5 x 2.5
