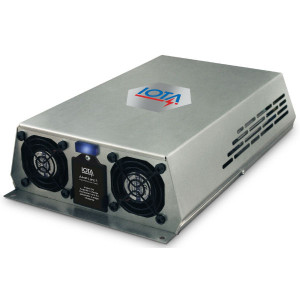

IOTA Engineering and the SDC Battery Charger / Converter

During the summer of 2016 IOTA Engineering unveiled their new dual function Solid State DC Charger Power Supply. This SDC series converter charger incorporates design suggestions from both commercial and retail users that currently enjoy the very popular DLS series power supplies and chargers. Let’s take a moment and review some of the highlights.

Solid DC Charging Performance

Have you ever experienced erratic AC power fluctuations? Perhaps the rolling brown-outs in California or the sudden voltage spikes that occur in rural America are something you are familiar with? Or does your generator put forth an erratic modified AC wave form instead of a pure sine wave? The IOTA Solid-DC Series keeps your DC loads operating perfectly, with clean, safe DC power. This avoids potential damage to your systems caused from errant DC voltage. No matter how unpredictable your AC line voltage, the SDC1 provides unparalleled protection against such dangers. To say it another way, they can handle the roughest AC power conditions and still produce clean and steady DC power.

These 12V and 24V power supply converters are auto sensing and adapt quickly and safely to changing load demands. There are no switches. The Power Factor Correction design provides efficient utility consumption, operating at a Power Factor of >90% at full load. Building on the proven record of the DLS charger / converters the SDC deliver the reliability and exceptional operation that you demand.

Features of the SDC Series IOTA Charger

3 YEAR WARRANTY

While a warranty is obviously not a design feature, it most certainly is a value added feature. Long manufacturer warranties testify to the quality and workmanship that went into producing the product. It reassures the end user that IOTA Engineering has put their stamp of approval and guarantee behind what you are buying. IOTA warranties all SDC power products in the USA and Canada from defects in materials or workmanship under normal use for three full years from date of purchase. (The regular DLS Series have a two year warranty.)

UL and CUL 458 LISTED

All SDC1 models are UL listed for both the USA and Canada. Underwriters Laboratories (UL) is a world leader in independent product safety testing and certification. Most commercial companies and trades require the use of UL listed and certified products. To gain UL approval the producer must prove the product will perform under specific conditions, comply with regulatory codes and standards, and mitigate specific risks such as fire. All of the products carrying these marks are covered by UL’s Follow-Up Services program to determine that they continue to be manufactured in compliance with UL’s requirements.

There are hundreds of UL standards and some incorporate the standards of two or more very specific UL requirements. UL and CUL 458 standards can be summarized by this statement:

These requirements cover fixed and stationary power converters, power-converter systems, and accessories having a rated nominal input of 120, 120/240, or 240 V, alternating current and a nominal output of 24 V or less, direct current. These converter battery chargers are intended for use within land vehicles where not directly exposed to outdoor conditions, and are intended to be employed in accordance with the National Electrical Code, NFPA 70.

PRODUCT DESIGN

The solid state battery chargers now have a smooth vent free top surface with strategic side vents to maximize air flow cooling while protecting interior components from intrusion of dust or debris. The recessed design provides for easier handling of the converter battery charger when re-locating for temporary or 'shop' applications.

Applications with limited compartment space will be better suited by the SDC units vs. the DLS units as they now have a more compact minimal profile design. The fan has been internalized and utilizes proportional fan control for quiet operation.

SDC1 Series features larger terminal block connections to accommodate size 2 to 16 gauge wire. If you need to change a fuse it is now easier than ever. The holder has been re-designed for quick easy access.

MODULAR CHARGE CONTROL

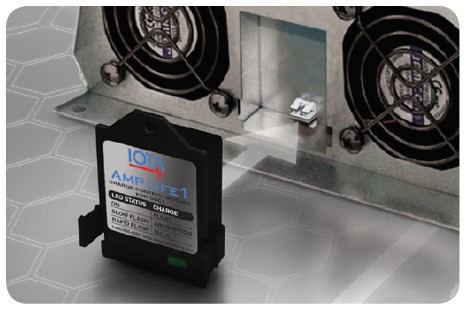

The SDC1 accessory port allows for simple, snap-in installation of the AL1 AmpLife smart-charge control module. The AmpLIfe controller optimizes battery life and performance with automatic Bulk, Absorption, Float and Equalization charging. To utilize the SDC1 converter as both a power supply and a smart charger you must purchase the AmpLife detachable module.

Iota Engineering: Legacy of Excellence

These Solid State Battery Chargers are built on a tradition of quality performance and have been the AC/DC power solution of choice by professionals around the globe. Designed to rigorous quality control standards and UL specifications, IOTA Engineering’s commitment to excellence has placed them in the driver seat when it comes to generating commercially viable power products. Several companies have reversed engineered and produce similar looking products, but there is something to be said about being the industry leader, not simply a ‘me too’ follower.

Engineered for rugged and durable performance the SDC1 series has been manufactured with tried and tested components and material for confident operation. Whether you are using it in an industrial application or for your boat, car, truck or RV; discover what it is like to own a power supply / charger that is durable, dependable and proven.
